6.6L GMC & Chevrolet Duramax Frantz Bypass Oil Filter Kit

$437.95 - $437.95

6.6L GMC & Chevrolet Duramax Frantz Bypass Oil Filter Kit

(3 customer reviews)

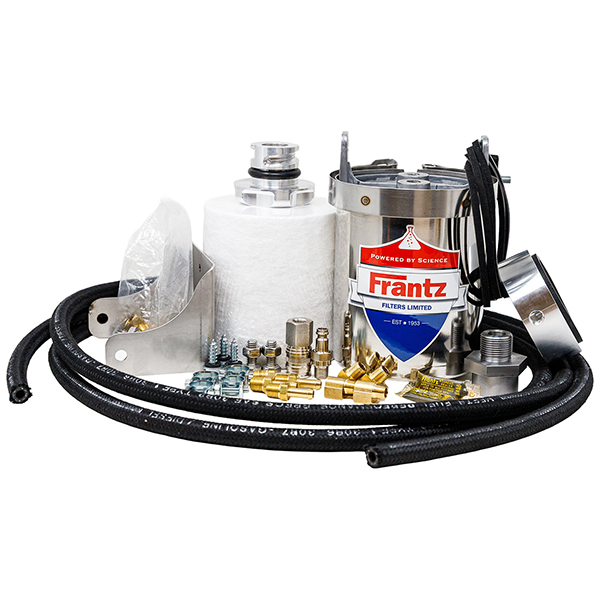

This kit contains all of the parts and fittings necessary to install the Frantz Filter System on your 6.6L Duramax. ALL NEW kits available, now supporting Duramax engines newer than 2017.

Clear

SKU: FKDMX Category:

Increased Engine Life
Extended Drain Intervals
Saves money on oil changes
Superior Oil Filtering
An Endless Supply of Pure Oil
Improved Oil Cooling

The Frantz Filter Bypass System is the most efficient oil filter that is commercially available for engines today. Even after many thousands of miles of use, oil filtered through a Frantz Filter Bypass System will be free of contamination to such a degree that it is considered analytically clean and suitable for further use.

Bypass filters remove solid contamination from lubricating oil. These types of filters are capable of removing extremely small size particles from the oil by providing filtration in depth through a densely packed filtering media. Oil flow through the bypass type filter is controlled at a rate so deliberate that it can trap and remove from the oil extremely small solid particles.

Through Model Year 2016:

(1) Basic Frantz Filter Kit
(1) 1/4 Male to 1/8 Female bushing
(1) 1/8″ Quick Disconnect M/F
(1) 13/16″ 16 Thread Nut
(2) 45 degree elbows
(2) 90 degree elbows
(1) 8 foot – Hose tubing 1/2″
(4) Clamps 1/2″
(1) Duramax Oil Fill cap 2016 and down
(2) Filter base gaskets
(1) Hose – 8 foot – Blue
(1) Large Adapter Ring C
(1) Large adapter ring C Gasket
(4) Male Connector 1/4″ Hose ID x 1/8″ MIP
(1) O ring for Duramax
(1) Thread Seal Package

Model Year 2017 through 2019:

(1) Basic Frantz Filter Kit
(1) 1/4 Male to 1/8 Female bushing
(1) 1/8″ Quick Disconnect M/F
(1) 13/16″ 16 Thread Nut
(2) 45 degree elbows
(2) 90 degree elbows
(1) 8 foot – Hose tubing 1/2″
(4) Clamps 1/2″
(1) Duramax Oil Fill cap 2017 and up
(2) Filter base gaskets
(1) Hose – 8 foot – Blue
(1) Large Adapter Ring C
(1) Large adapter ring C Gasket
(4) Male Connector 1/4″ Hose ID x 1/8″ MIP
(1) O ring for Duramax
(1) Thread Seal Package

Model Year 2020 and newer:

(1) Basic Frantz Filter Kit
(1) 1/4 Male to 1/8 Female bushing
(1) 1/8″ Quick Disconnect M/F
(1) 22mm x 1.5 Nut
(2) 45 degree elbows
(2) 90 degree elbows
(1) 8 foot – Hose tubing 1/2″
(4) Clamps 1/2″
(1) Duramax Oil Fill cap 2017 and up
(2) Filter base gaskets
(1) Hose – 8 foot – Blue
(1) Large Adapter Ring B
(1) Large adapter ring B Gasket
(4) Male Connector 1/4″ Hose ID x 1/8″ MIP
(1) O ring for Duramax
(1) Thread Seal Package

6.6L Duramax Instructions 2016 and earlier
6.6L Duramax Instructions 2017-2019
6.6L Duramax Instructions 2020 and newer

Share your thoughts!

5 out of 5 stars

3 reviews

5 3
4 0
3 0
2 0
1 0

Let us know what you think...

What others are saying

  1. Steve Patton

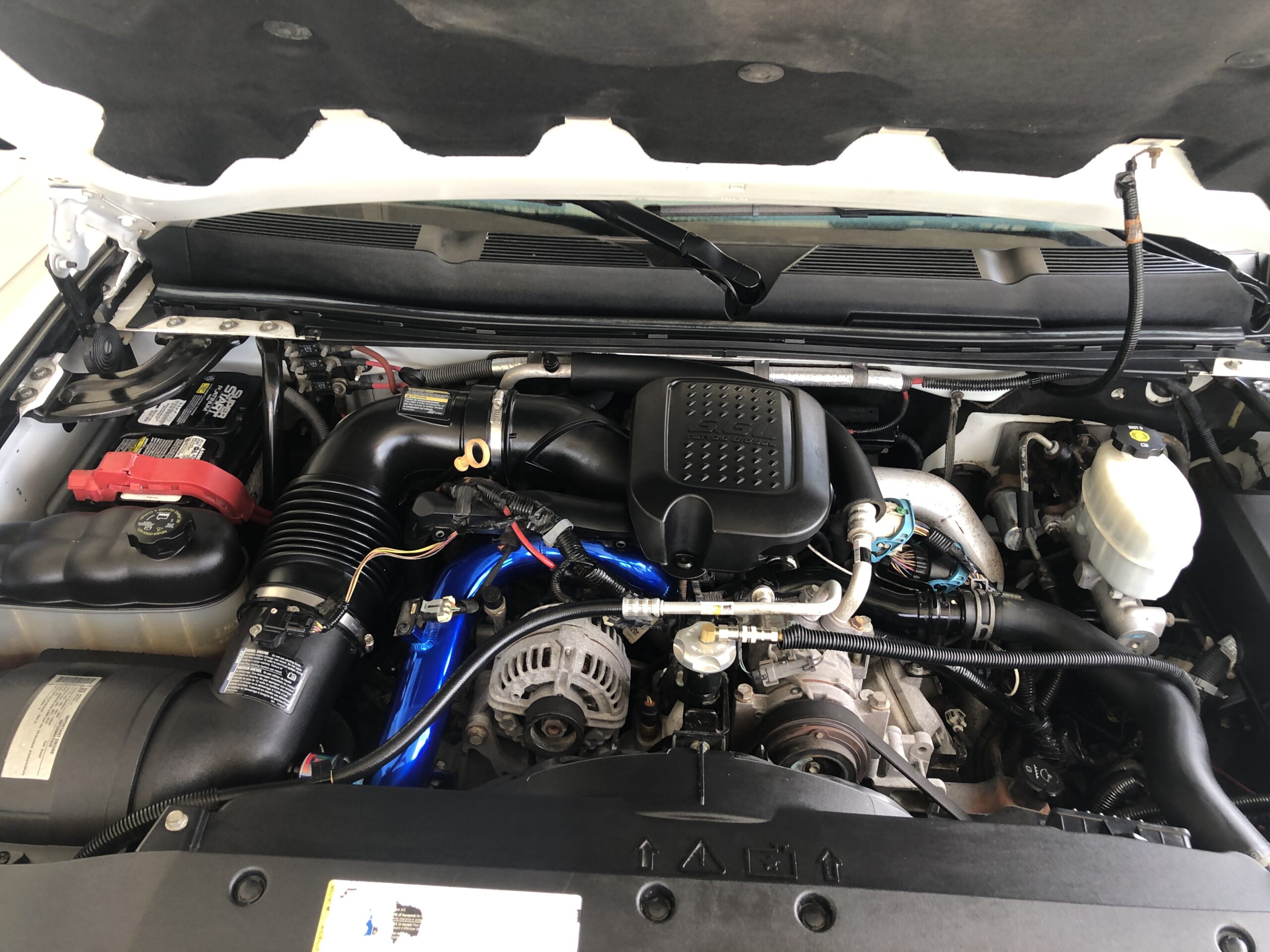

    Engine bay looking good.

    Steve Patton

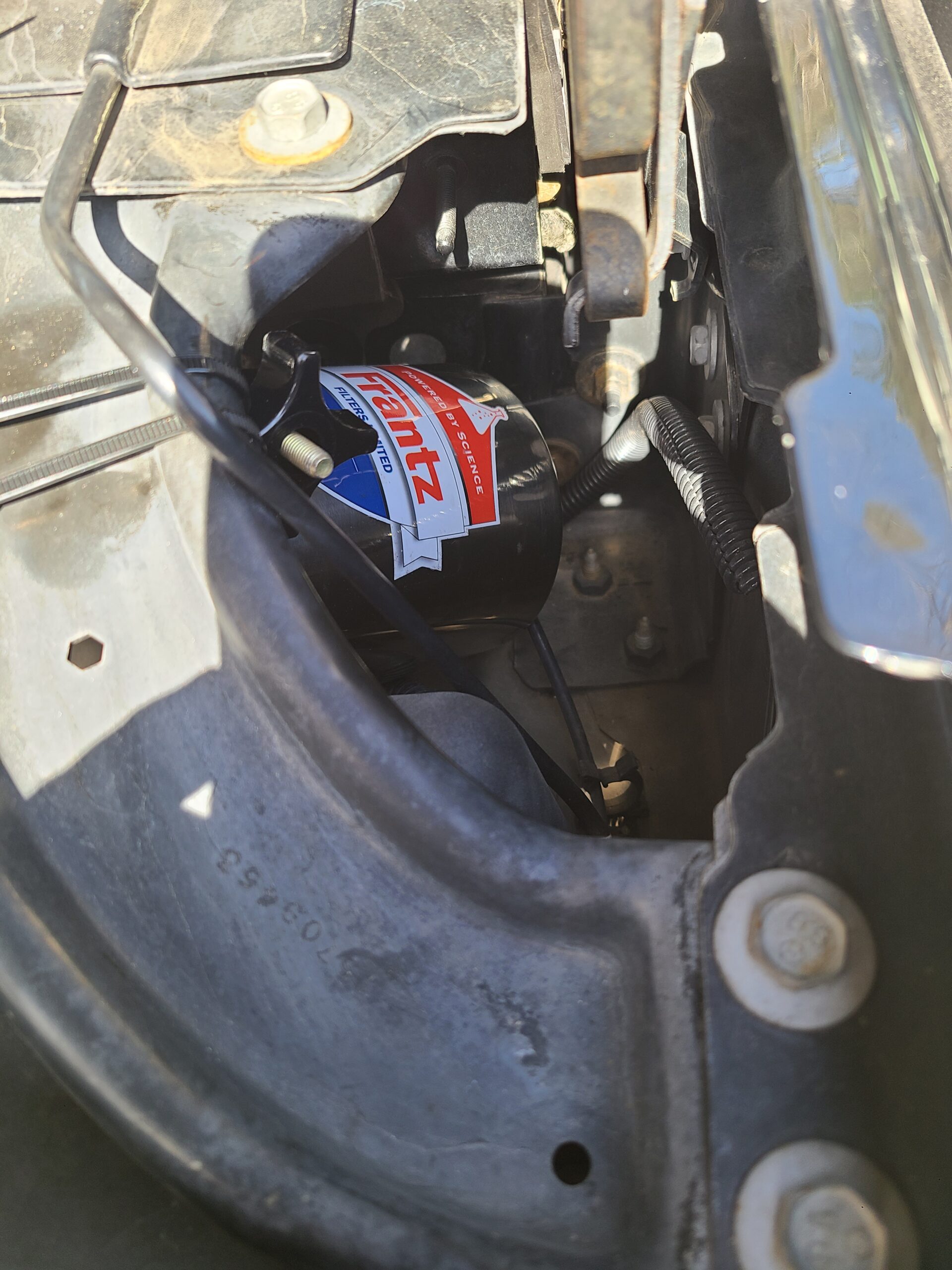

    Just installed my new Frantz filter and Blue Diamond oil!!!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Hot Shot’s Secret

      Looking great! Thanks for using our products!

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Steve Patton

    Duramax is feeling good

    Steve Patton

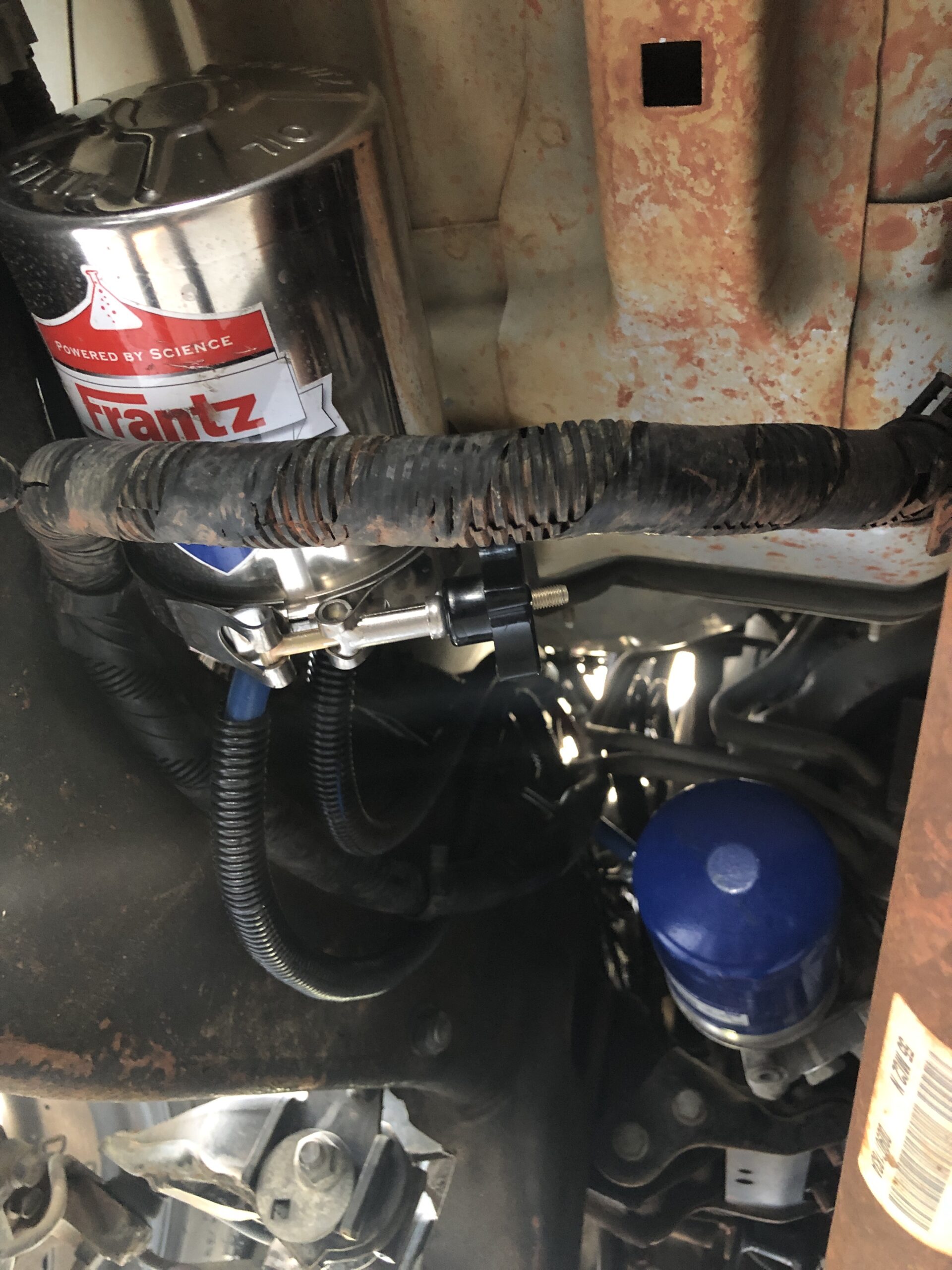

    Just installed my new Frantz filter in my 2010 Duramax no place under the hood so I installed below near my oil filter for easy replacement

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Hot Shot's Secret

      Hot Shot’s Secret

      Super easy! Looks great and thanks for using our filters!

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. jcbarringer

    Easy Install

    jcbarringer

    Product arrived quickly, easy Install. Looking forward to extending oil changes. Thank you!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Hot Shot's Secret

      Hot Shot’s Secret

      Thank you!!

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
