This kit contains all of the parts and fittings necessary to install the Frantz Filter System on your 6.6L Duramax. ALL NEW kits available, now supporting Duramax engines newer than 2017.
The Frantz Filter Bypass System is the most efficient oil filter that is commercially available for engines today. Even after many thousands of miles of use, oil filtered through a Frantz Filter Bypass System will be free of contamination to such a degree that it is considered analytically clean and suitable for further use.Bypass filters remove solid contamination from lubricating oil. These types of filters are capable of removing extremely small size particles from the oil by providing filtration in depth through a densely packed filtering media. Oil flow through the bypass type filter is controlled at a rate so deliberate that it can trap and remove from the oil extremely small solid particles.
The Frantz Filter Bypass System is the most efficient oil filter that is commercially available for engines today. Even after many thousands of miles of use, oil filtered through a Frantz Filter Bypass System will be free of contamination to such a degree that it is considered analytically clean and suitable for further use.
Bypass filters remove solid contamination from lubricating oil. These types of filters are capable of removing extremely small size particles from the oil by providing filtration in depth through a densely packed filtering media. Oil flow through the bypass type filter is controlled at a rate so deliberate that it can trap and remove from the oil extremely small solid particles.

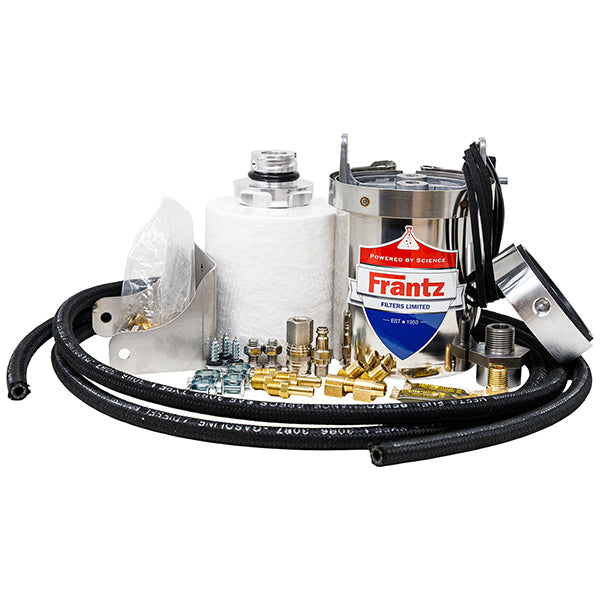

Through Model Year 2016:
(1) Basic Frantz Filter Kit
(1) 1/4 Male to 1/8 Female bushing
(1) 1/8″ Quick Disconnect M/F
(1) 13/16″ 16 Thread Nut
(2) 45 degree elbows
(2) 90 degree elbows
(1) 8 foot – Hose tubing 1/2″
(4) Clamps 1/2″
(1) Duramax Oil Fill cap 2016 and down
(2) Filter base gaskets
(1) Hose – 8 foot – Blue
(1) Large Adapter Ring C
(1) Large adapter ring C Gasket
(4) Male Connector 1/4″ Hose ID x 1/8″ MIP
(1) O ring for Duramax
(1) Thread Seal Package

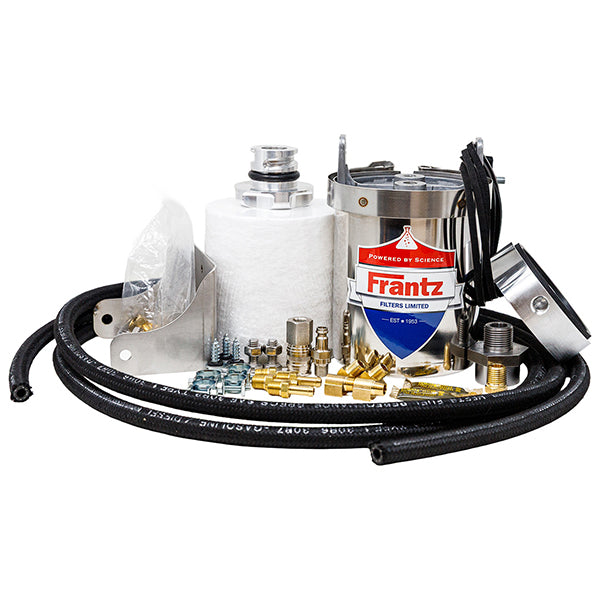

Model Year 2017 through 2019:
(1) Basic Frantz Filter Kit
(1) 1/4 Male to 1/8 Female bushing
(1) 1/8″ Quick Disconnect M/F
(1) 13/16″ 16 Thread Nut
(2) 45 degree elbows
(2) 90 degree elbows
(1) 8 foot – Hose tubing 1/2″
(4) Clamps 1/2″
(1) Duramax Oil Fill cap 2017 and up
(2) Filter base gaskets
(1) Hose – 8 foot – Blue
(1) Large Adapter Ring C
(1) Large adapter ring C Gasket
(4) Male Connector 1/4″ Hose ID x 1/8″ MIP
(1) O ring for Duramax
(1) Thread Seal Package

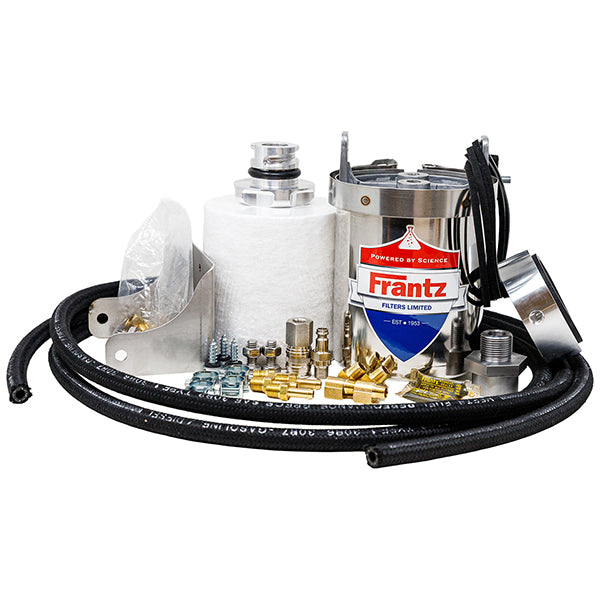

Model Year 2020 and newer:
(1) Basic Frantz Filter Kit
(1) 1/4 Male to 1/8 Female bushing
(1) 1/8″ Quick Disconnect M/F
(1) 22mm x 1.5 Nut
(2) 45 degree elbows
(2) 90 degree elbows
(1) 8 foot – Hose tubing 1/2″
(4) Clamps 1/2″
(1) Duramax Oil Fill cap 2017 and up
(2) Filter base gaskets
(1) Hose – 8 foot – Blue
(1) Large Adapter Ring B
(1) Large adapter ring B Gasket
(4) Male Connector 1/4″ Hose ID x 1/8″ MIP
(1) O ring for Duramax
(1) Thread Seal Package
